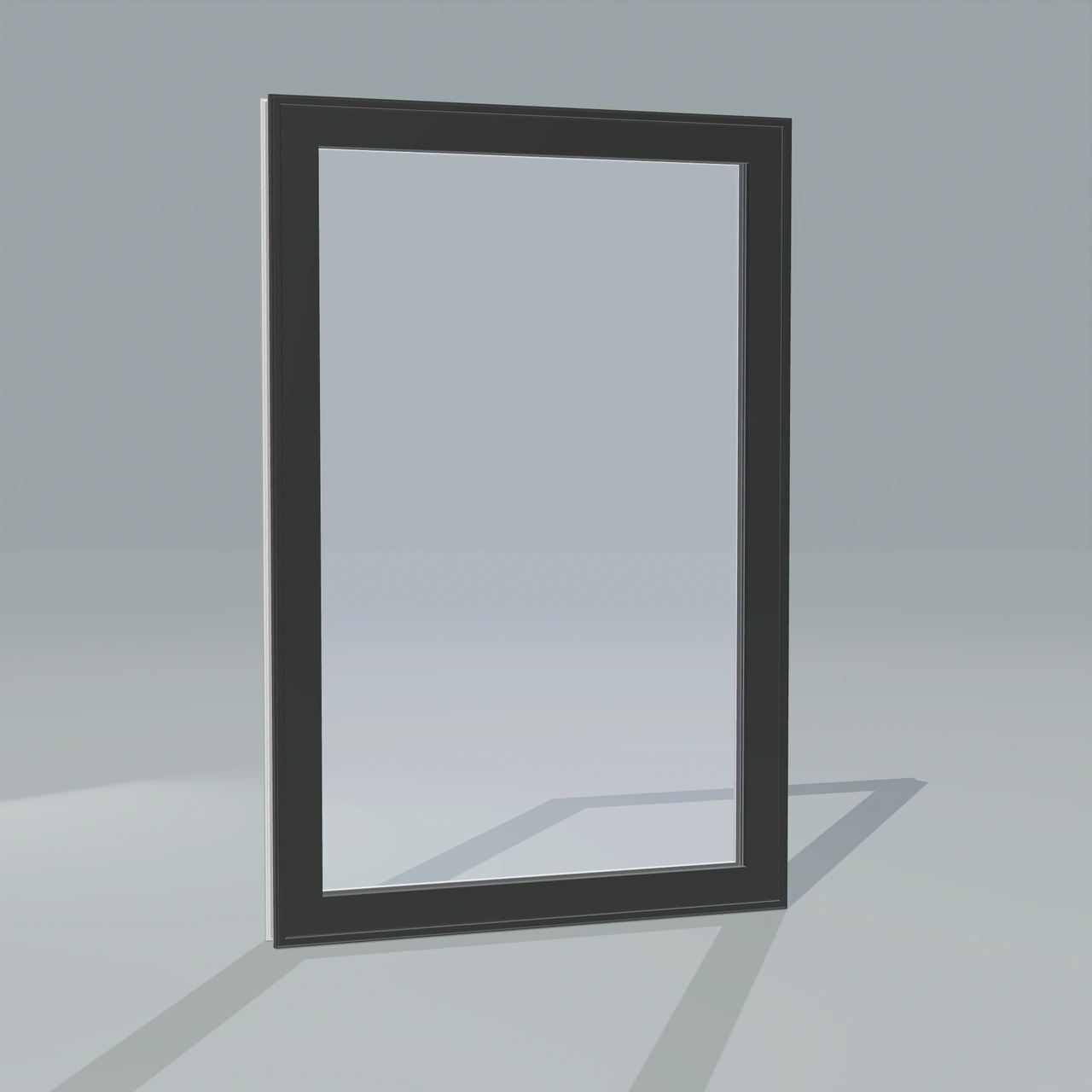

High-Fixed Windows
High fix is a fixed-window profile that can coordinate with adjacent operating windows. The name does not require installation high on a wall. Compare frame sightlines and visible glass using the product drawings.
Best uses
- Fixed sections beside operating windows
- Coordinated frame sightlines
- Rooms with ventilation provided elsewhere
- Openings with a safe plan for cleaning fixed glass
Coordinate Frame Sightlines
Compare the high-fix frame profile with adjoining operating windows. High fix is a profile choice, not a required mounting height.
Plan Privacy
Placement, glass choice and views from outside affect privacy. A high-fix profile does not by itself provide privacy.
Compare Certified Ratings
Compare whole-product U-factor, SHGC and air-leakage ratings for the selected glass, frame and size. The operating style does not establish certification or energy savings.
High-Fixed Windows specifications
Configure High-Fixed Windows · All window styles
Plan your window order
Whole-window performance you can compare
Panes manufactures certified casement, awning, hung, slider and fixed window systems. Compare published NFRC reference configurations, including lift-out and tilt slider series and both low-profile and high-profile fixed windows. The directory identifies Panes Window Manufacturing Inc. as the manufacturer.
High Profile Fixed
NFRC family PNS-K-25 · Verified October 8, 2026 · View the NFRC directory
| Glass configuration | U-factor Btu/(h·ft²·°F) | U-factor W/(m²·K) | SHGC | VT | NFRC CPD number |
|---|---|---|---|---|---|
| Double pane · Low-E 180 / clear CCl-arg97-180| ss | 0.25 | 1.42 | 0.53 | 0.61 | PNS-K-25-00001-00001 |
| Double pane · Low-E 272 / clear CCl-arg97-272| ss | 0.25 | 1.42 | 0.39 | 0.56 | PNS-K-25-00003-00001 |
| Double pane · Low-E 366 / clear CCl-arg97-366| ss | 0.24 | 1.36 | 0.31 | 0.50 | PNS-K-25-00005-00001 |
| Triple pane · Low-E 180 / clear / Low-E 180 180-arg97-CCl-arg97-180| ss | 0.15 | 0.85 | 0.44 | 0.54 | PNS-K-25-00013-00001 |
| Triple pane · Low-E 272 / clear / Low-E 272 272-arg97-CCl-arg97-272| ss | 0.14 | 0.79 | 0.27 | 0.44 | PNS-K-25-00015-00001 |
- U-factor
- Heat transfer through the complete window. Lower values indicate better insulation. U.S. values use Btu/(h·ft²·°F); metric equivalents use W/(m²·K).
- SHGC
- Solar heat gain coefficient, from 0 to 1. Lower values admit less solar heat.
- VT
- Visible transmittance, from 0 to 1. Higher values admit more visible light.
These reference configurations have no grilles. Each row preserves the NFRC manufacturer code for its frame, glass and gas combination. Select the matching series and glass package, and confirm the CPD number and label for your order. Different glass, grilles, frame systems and joined assemblies can have different ratings.
For Midwest and Northeast projects, compare heat transfer, winter sunlight and summer exposure together. A lower U-factor indicates less heat transfer. A lower SHGC admits less solar heat; a higher SHGC admits more. VT describes visible light transmission. Orientation, shading and local code affect the choice. NFRC ratings alone do not establish ENERGY STAR eligibility.
Download the reference ratings and source links (CSV) · Download the printable reference (PDF)
Compare all Panes window ratings
Match the rating to your made-to-order window
Keep the frame dimensions, operating style, glass, grilles and hardware together in your approved specification. Ask Panes for the applicable certification label or CPD reference when comparing quotes.
