Double Slider Windows

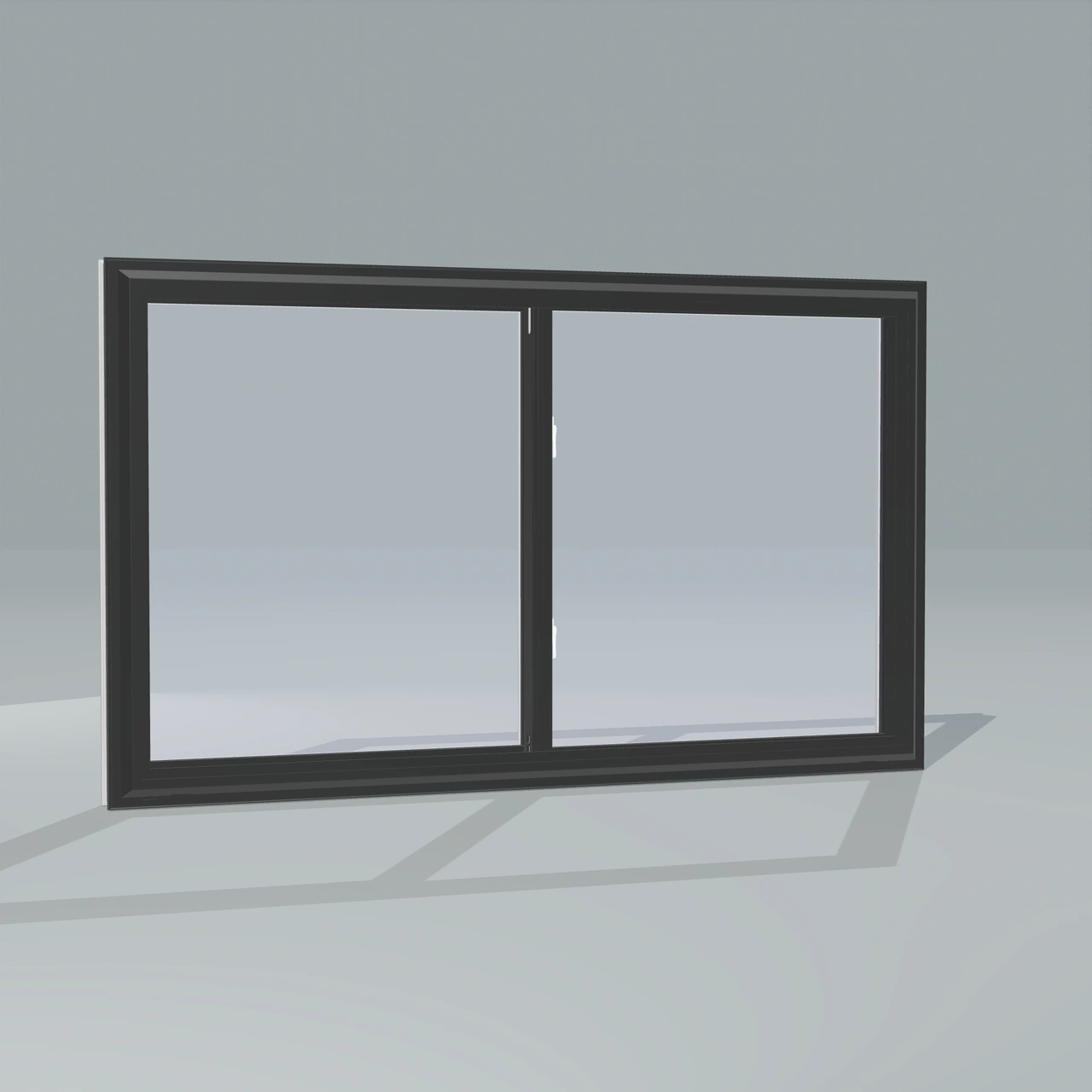

Angled exterior view of a black double slider window, rendered from the Panes 3D configurator

Double slider windows have two sashes that move horizontally within the frame. Open either side for ventilation without an outward swing. Choose your custom size, finish and glass, or select the double slider tilt model if you want tilt-in cleaning.

Choosing double slider windows

Standard or tilt: choose how you will clean the window
Your choice	Double slider	Double slider with tilt
Ventilation	Both sashes slide horizontally.	Both sashes slide horizontally.
Cleaning model	Standard lift-out model. Follow the removal and cleaning instructions for the supplied window.	Both sashes tilt inward for cleaning. Allow room inside to support each sash.
Finishes	White exterior / white interior, or black exterior / white interior.	White exterior / white interior, or black exterior / white interior.
Installation flange	Choose with or without a nailing flange for your installation.	Choose with or without a nailing flange for your installation.

Double slider vs. single slider

Both sashes move on a double slider. A single slider has one operating sash and one fixed section. Both styles keep their moving sash within the frame, which can suit openings beside walkways or patios. The sashes overlap when opened, so the clear opening is smaller than the overall window width.

Double slider vs. double-pane glass

These names describe different features. Double slider refers to the two moving sashes; double-pane refers to two layers of glass in an insulated glass unit. Choose the operating style first, then compare the glazing packages and whole-window ratings offered for that configuration.

Choose the cleaning model deliberately

Panes offers a separate double slider tilt model. Select that model in the pricing tool if tilt-in access is part of your plan. Confirm the operating and cleaning instructions for your chosen window, and check that interior furniture and blinds leave space for the sashes.

Can both sides of a double slider window open?

Yes. Both sashes can slide horizontally, allowing ventilation from either side. Because they share the frame and overlap, two moving sashes do not create an opening equal to the full frame width.

Does every double slider tilt inward?

No. Choose the double slider tilt model for tilt-in cleaning. The standard double slider and the tilt model are separate choices in the Panes window configurator.

How do I price a custom double slider?

Use the design and pricing tool to enter the size and choose the available finish, glass and other options. Check the measuring method for your installation, and confirm final order dimensions before purchasing. Send photos and measurements if you need help with the opening.

Can I use double sliders for replacement or new construction?

Yes. For replacement, have your installer assess the existing frame and confirm an insert or full-frame approach. For new construction, coordinate the rough opening, flange and flashing. Select the nailing-flange option to match the installation plan; frame dimensions and rough-opening dimensions are different.

Are 48, 60 and 72 inches the only widths available?

No. The 48 × 36, 60 × 36 and 72 × 36 inch frames on this page are price-comparison examples. Enter your own frame dimensions in the designer to check the sizes supported for the selected standard or tilt model. These dimensions are not the glass size or clear opening.

Should I choose a double slider or an end-vent slider?

A double slider has two sliding sashes with a meeting rail between them. An end-vent slider has a fixed centre section and an operating sash at each end. Compare the section proportions, sightlines and usable openings for the room; the complete frame width is not the ventilation opening width.

Double Slider Windows specifications

Configure Double Slider Windows · All window styles

Plan your made-to-order double slider windows

Match the model to the opening

Both sashes slide horizontally within the frame, making this style useful where an outward swing would obstruct a path. Confirm frame dimensions and the required clear opening. Choose the separate double slider tilt model if you want tilt-in cleaning; that feature is not included on every double slider.

Compare glass for your climate

For Midwest and Northeast projects, compare double-pane and triple-pane packages using the whole-window U-factor and SHGC for the selected configuration. Lower U-factor means less heat transfer; SHGC describes solar heat gain. Sun exposure, shading and local requirements matter too. Confirm the applicable ratings and any certification for your final size and glass package.

Review the complete order

Your configured price depends on the size, glass, finish and selected options. Review quantity, taxes, freight and any order-level charges separately, and confirm final dimensions before purchasing. Panes supplies custom windows across the continental US; arrange installation with your contractor. Confirm freight access and delivery timing before scheduling the work.

Double-slider window prices by size

Compare three widths at the same 36-inch frame height. Both sashes slide horizontally. Choose the standard lift-out model or the separate tilt model, then compare the same finish, glass and flange across all three sizes.

White exterior / white interior · Without nailing flange · Double-pane Low-E 272 / clear with argon

Current product prices · USD · frame width × height
Frame size	Price for one window	Customize
48 × 36 inches	$393.77 USD	Customize 48 × 36
60 × 36 inches	$500.07 USD	Customize 60 × 36
72 × 36 inches	$595.84 USD	Customize 72 × 36

Price is for one made-to-order window with a regular screen and no grilles. Brickmould and interior jamb extensions are excluded. Tax, freight and installation are separate. These are editable starting configurations, not in-stock sizes. Frame dimensions are not rough-opening or clear-opening dimensions; confirm the final measurements and installation details before ordering.

Compare standard and tilt double sliders

These 60 × 40 inch configurations both have two horizontally moving sashes. Choose the separate tilt model if inward sash access for cleaning is part of your plan. Opening both sashes does not create a full-width clear opening.

Double-pane Low-E 272 / clear with argon. Frame dimensions shown below; confirm the rough opening and installation allowance separately.

Angled exterior configurator view of the 60 × 40 inch double slider, white exterior / white interior, without nailing flange

Double Slider · 60 × 40 inches

$550.35 USD

One window · White / white · Without nailing flange

View this configuration and customize

Angled exterior configurator view of the 60 × 40 inch double slider with tilt, white exterior / white interior, without nailing flange

Double Slider with Tilt · 60 × 40 inches

$556.83 USD

One window · White / white · Without nailing flange

View this configuration and customize

Exterior views rendered from the Panes 3D configurator. Confirm dimensions and finish samples before ordering.

Separate operation from glass

Double slider means two moving sashes. Double pane means two glass layers. You choose the operating model and the glass package separately.

Allow room for cleaning

The tilt model needs clear space inside to support and tilt the sashes. Check the selected model’s instructions and the position of blinds, counters and furniture.

Included in these examples: Each example has white exterior and interior, a regular screen, no grilles and no nailing flange. Brickmould and interior jamb extensions are excluded. Prices are for one complete configured window; tax, delivery and installation are separate.

White/white and black exterior/white interior are available for these styles. Open a configuration to choose a finish or the version with a nailing flange. Confirm the installation method before choosing the flange; custom dimensions and options change the price.

Estimated production is 15–20 business days, followed by freight transit. For US projects, arrange measurement and installation with your contractor. Confirm freight charges, unloading access and delivery timing for your address.

Views from the Panes configurator

Your double slider, from both sides.

Compare a black exterior with a white interior on the same made-to-order window. These are native 3D configurator views of the standard double-slider model; inward tilt for cleaning is a separate model choice.

Panes configurator exterior rendering of a 60 by 40 inch double slider with black exterior, white interior and no nailing flange — Black exterior
This 60 × 40 inch frame shows the two-sash layout from outside. Both sashes slide horizontally; their overlapping tracks remain inside the frame.

Panes configurator interior rendering of the same 60 by 40 inch black-exterior, white-interior double slider without a nailing flange — White interior
The same configuration viewed from the room. Compare the white interior, meeting rail and handle positions with your trim and furniture.

Configurator renderings, not installation photographs. Frame size shown: 60 × 40 inches; no nailing flange. Confirm finishes using physical samples.

Made to order by Panes.

The NFRC directory identifies Panes Window Manufacturing Inc. as the manufacturer. Our published reference tables connect each window family and glass package to its CPD number, so you can compare the window you plan to order.

Define each opening
Record frame width and height, standard or tilt model, interior and exterior finish, glass and installation flange together.
Review before production
Match every opening to the approved configuration and itemized price. Confirm the whole-window rating for the selected frame and glass combination.
Plan the arrival
Allow 15–20 business days for window production, then freight transit. Arrange measurement and installation with your contractor; confirm your delivery address, freight charges and receiving access.

Panes windows with dark frames on a brick building in Paton, Iowa

A documented Panes project

Panes windows in Paton, Iowa

A documented Panes window project on an existing brick building. Dark frames connect the tall ground-floor openings with the smaller windows above.

Project shown for overall design context. Window models, sizes and glass are specified separately for each opening.

View the original Panes project post

Plan your window order

Planning several openings? Start with a 10-, 15- or 20-window mix, then adjust the types, frame sizes, quantities and options. The estimate covers products; freight, tax and installation are separate.

Whole-window performance you can compare

Panes manufactures certified casement, awning, hung, slider and fixed window systems. Compare published NFRC reference configurations, including lift-out and tilt slider series and both low-profile and high-profile fixed windows. The directory identifies Panes Window Manufacturing Inc. as the manufacturer.

Double Slider Tilt Out

NFRC family PNS-K-26 · Verified October 8, 2026 · View the NFRC directory

Reference configurations without grilles. Metric U-factor is converted from the published U.S. value.
Glass configuration	U-factor Btu/(h·ft²·°F)	U-factor W/(m²·K)	SHGC	VT	NFRC CPD number
Double pane · Low-E 180 / clear CCl-arg97-180\| ss	0.29	1.65	0.52	0.60	PNS-K-26-00001-00001
Double pane · Low-E 272 / clear CCl-arg97-272\| ss	0.28	1.59	0.38	0.54	PNS-K-26-00003-00001
Double pane · Low-E 366 / clear CCl-arg97-366\| ss	0.27	1.53	0.30	0.49	PNS-K-26-00005-00001
Triple pane · Low-E 180 / clear / Low-E 180 180-arg97-CCl-arg97-180\| ss	0.24	1.36	0.42	0.53	PNS-K-26-00014-00001
Triple pane · Low-E 272 / clear / Low-E 272 272-arg97-CCl-arg97-272\| ss	0.24	1.36	0.27	0.43	PNS-K-26-00018-00001

Explore double slider tilt out windows

Double Slider Lift Out

NFRC family PNS-K-27 · Verified October 8, 2026 · View the NFRC directory

Reference configurations without grilles. Metric U-factor is converted from the published U.S. value.
Glass configuration	U-factor Btu/(h·ft²·°F)	U-factor W/(m²·K)	SHGC	VT	NFRC CPD number
Double pane · Low-E 180 / clear CCl-arg97-180\| ss	0.28	1.59	0.52	0.60	PNS-K-27-00001-00001
Double pane · Low-E 272 / clear CCl-arg97-272\| ss	0.28	1.59	0.38	0.54	PNS-K-27-00003-00001
Double pane · Low-E 366 / clear CCl-arg97-366\| ss	0.27	1.53	0.30	0.49	PNS-K-27-00005-00001
Triple pane · Low-E 180 / clear / Low-E 180 180-arg97-CCl-arg97-180\| ss	0.24	1.36	0.42	0.53	PNS-K-27-00014-00001
Triple pane · Low-E 272 / clear / Low-E 272 272-arg97-CCl-arg97-272\| ss	0.23	1.31	0.27	0.43	PNS-K-27-00018-00001

Explore double slider lift out windows

U-factor: Heat transfer through the complete window. Lower values indicate better insulation. U.S. values use Btu/(h·ft²·°F); metric equivalents use W/(m²·K).
SHGC: Solar heat gain coefficient, from 0 to 1. Lower values admit less solar heat.
VT: Visible transmittance, from 0 to 1. Higher values admit more visible light.

These reference configurations have no grilles. Each row preserves the NFRC manufacturer code for its frame, glass and gas combination. Select the matching series and glass package, and confirm the CPD number and label for your order. Different glass, grilles, frame systems and joined assemblies can have different ratings.

For Midwest and Northeast projects, compare heat transfer, winter sunlight and summer exposure together. A lower U-factor indicates less heat transfer. A lower SHGC admits less solar heat; a higher SHGC admits more. VT describes visible light transmission. Orientation, shading and local code affect the choice. NFRC ratings alone do not establish ENERGY STAR eligibility.

Download the reference ratings and source links (CSV) · Download the printable reference (PDF)

Compare all Panes window ratings

Match the rating to your made-to-order window

Keep the frame dimensions, operating style, glass, grilles and hardware together in your approved specification. Ask Panes for the applicable certification label or CPD reference when comparing quotes.
